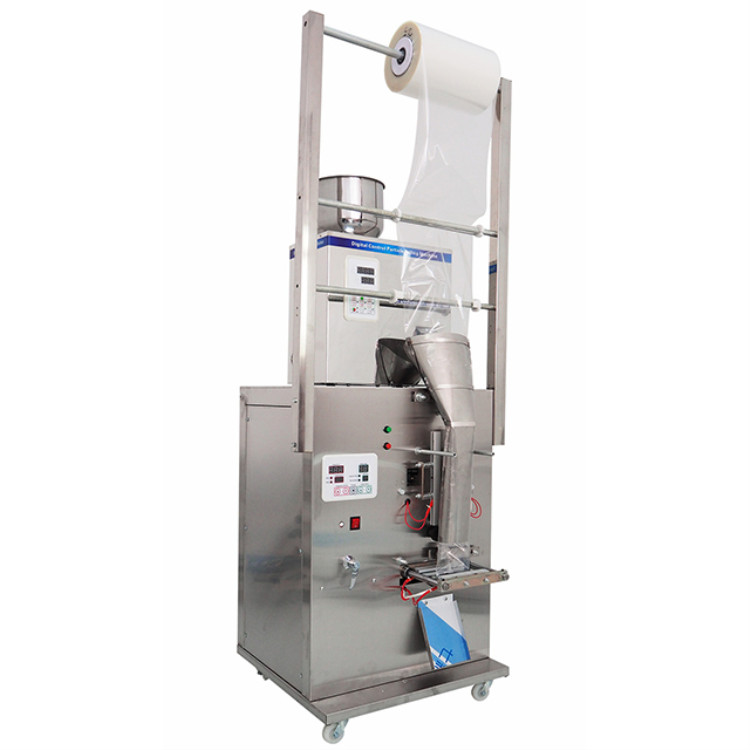

YTK 2-200g Automatic food multi-function packaging machines/coffee beans Tea Bag Packing Machine price

This machine is controlled by microchip computer and assisted with high precision sensors. It’s able to weighing, filling and packaging swift and steady. The structure of this machine is concise and simple, easy to use and able to switch different size of bag former to satisfy different packaging requirement.
Product Paramenters
Working voltage
220V or 110V 50Hz/60Hz
Sealing activation
Automatically
Bag Sealing Type
Back Sealing Type or  three sides sealing
Bag Cutting Type
Tooth Type
Mechanical power
500w
Packing speed
25-35bags per minute
Bag material
PP,filter paper,aluminium bag etc
Note: Machine can work on different kinds Bag-making sizes below,you can choose one of sizes or can customize other former size (If need 2 kinds of sizes or more,need to pay extra mould fee)
Bag length  (Can Be Customized)
Bag width   (Can Be Customized)
Weight : 72KG
Main Features

Control Panel

1.Pull Down Button: Manually pulls down the film. 2.Seal Cut Button: Manually seal and cut the film. 3.Vertical Seal Temperate: Display current or setting temperature 4.Actual Length Display: Length that’s pulled down 5.Vertical Seal Heating Status Light 6.Horizontal Seal And Cut Heating Status Light 7.Horizontal Seal Temperature: Display current or setting temperature 8.Temperature Ready Light 9.Working Ready Light 10.Length Setting Display 11.Increase Temperature Button 12.Decrease Temperature Button 13.Switch Between Two Temperature Setting 14.Increase Length Setting 15.Decrease Length Setting 16.Vibrating Switch 17.Power Switch

Interface

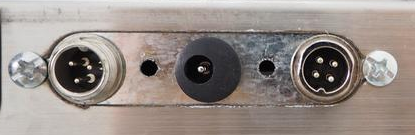

From left to right: 1.Photoelectric Sensor 2.Swing Device (no need to connect this normally) 3.Weighing And Dosing Machine

How to use 1.Mounting the film roll. 2.Mounting the coding printer if needed. 3.Mounting the photoelectric sensor if needed. 4.Insert film into bag former and tuck it between the pulling down wheel. 5.Connecting weighing and dosing machine. 6.Connecting photoelectric sensor if needed. 7.Power up both dosing and packaging machine. 8.Set the temperature and let the packaging machine heat up. 9.Pour the raw material into dosing machine. 10.Start the dosing machine and all should be working correctly.

This handle is used to open and close the pull down wheels.

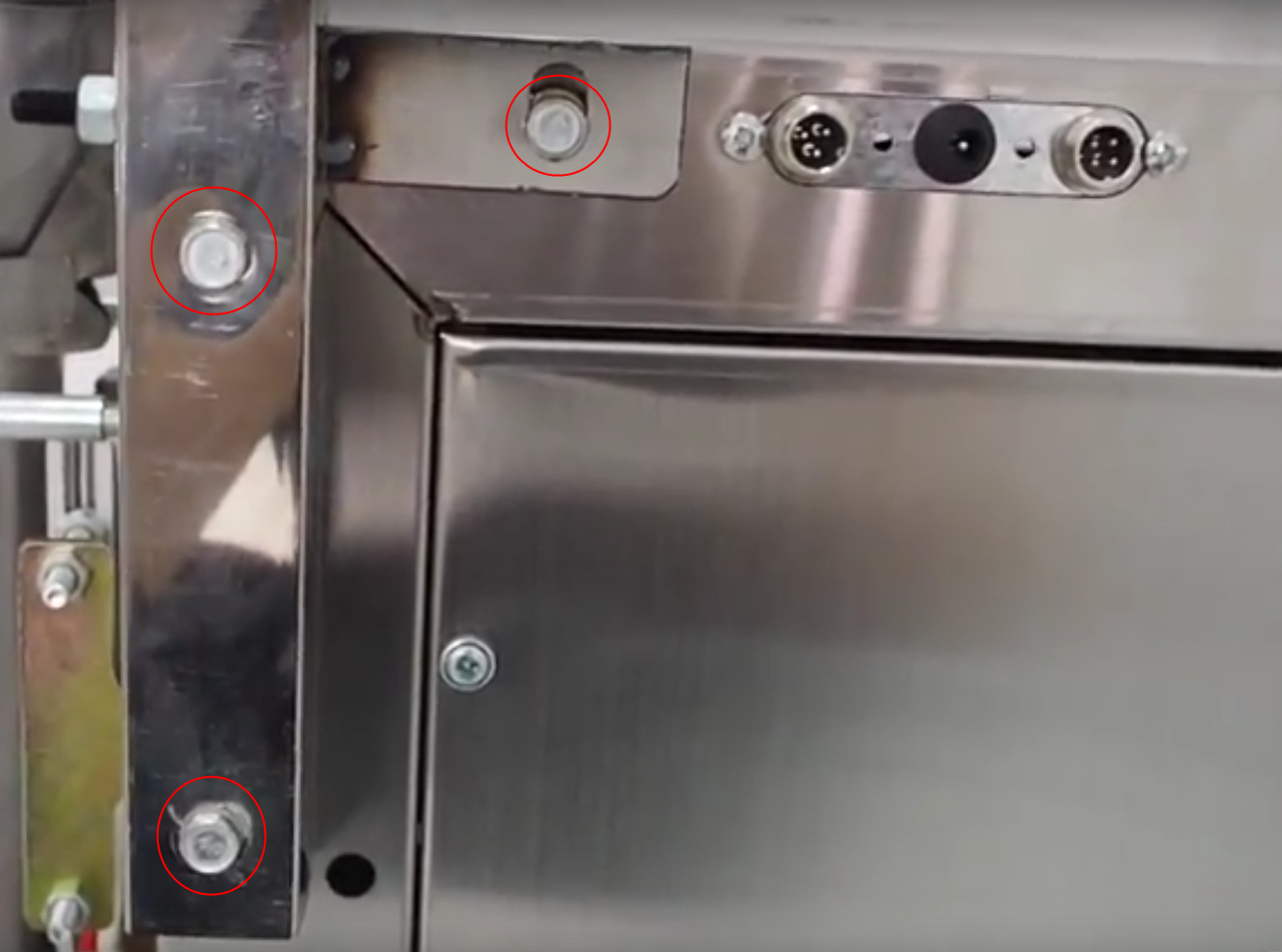

This is how you install the rack by fixing some bolts.

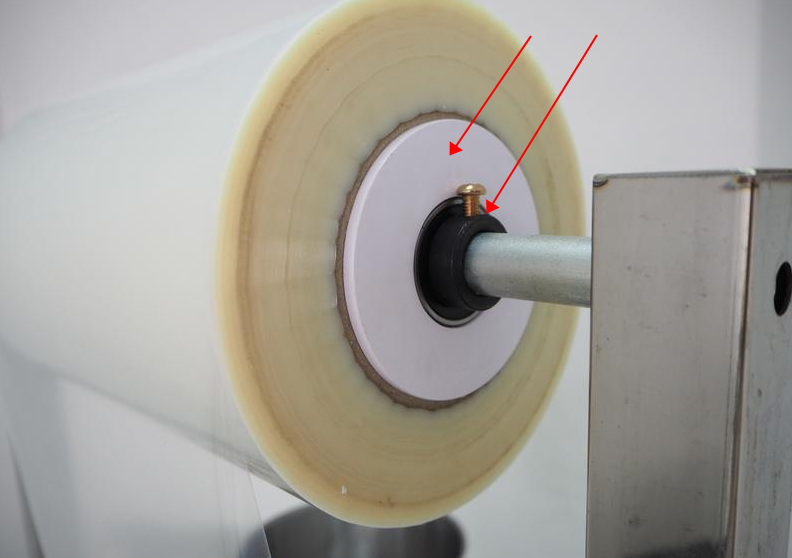

This is how you mount the roll.

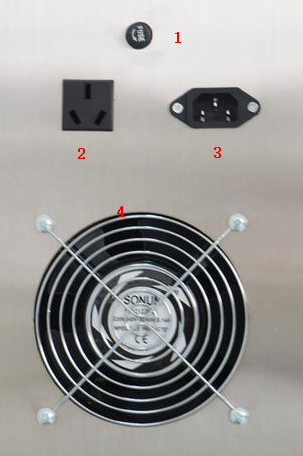

1.The fuse 2.Power socket for the weighing and dosing machine to draw electricity. 3.Power cable socket for providing power source to the machine. 4.Cooling fan for the packing machine.
