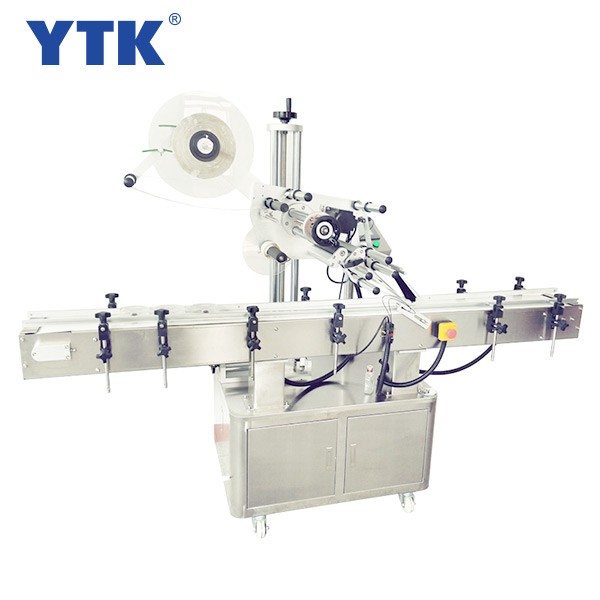

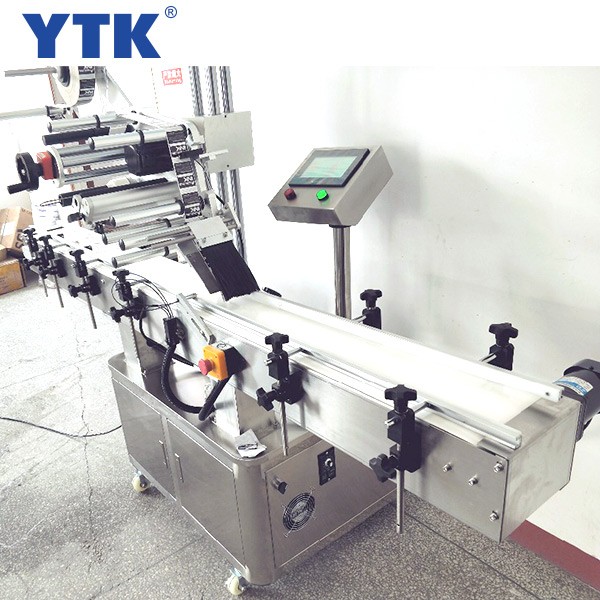

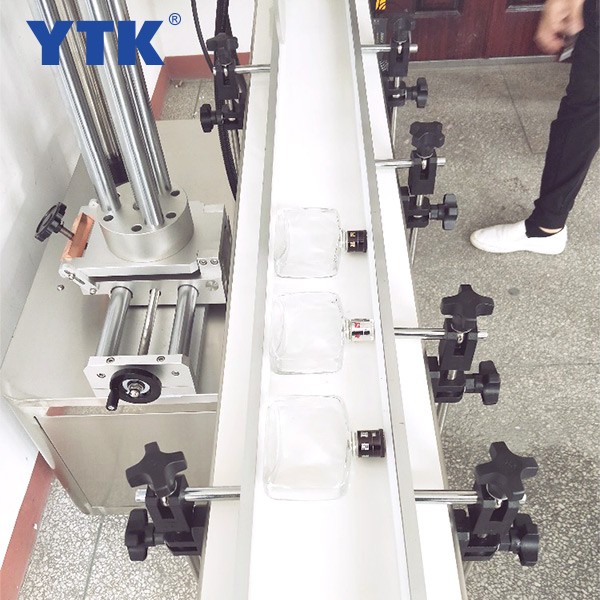

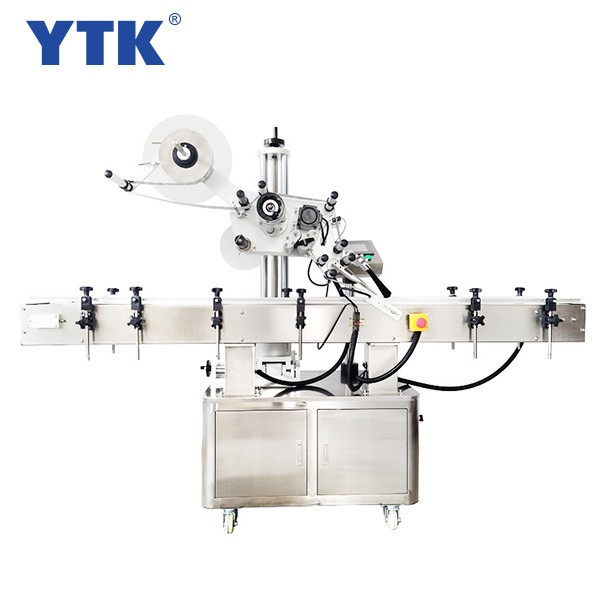

YTK-300 Automatic Automatic Box Carton Pouch Bag Flat Labeling Machine /Automatic Top Labeler Placed Labels On The Top Of Containers

YTK-300 Automatic Automatic Box Carton Pouch Bag Flat Labeling Machine /Automatic Top Labeler Placed Labels On The Top Of Containers

Product Item : YTK-300
Machine size: L2000xW550xH1600mm
Labeling speed: 60-350PCS/min
Labeling accuracy: ±1mm
Power supply: single phase 220V50/60HZ 1.5KW
Product description：YTK-300 plane labeling machine is made of high-grade stainless steel and high-grade aluminum alloy.The labeling head adopts high-speed servo motor to ensure labeling accuracy and speed. All photoelect
Inquiry

Machine Description:

The flat labeling machine can complete the automatic front and back double side labeling, which is suitable for automatic labeling of double sides and round bottle circumference of various flat and square products in food, daily chemical, pharmaceutical and other light industry.

Machine Parameter:

Model	YTK-300
Machine size	L2000×W550×H1600mm
Output speed	60-350PCS/min(depends on actual object)
Object Height	30-210mm
Object Thickess	20-120mm
Label Height	15-200
Label length	25-300
Precision	±1mm
RolI Inside Diameter	76mm
Roll outside Diameter	300mm
Power supply	220V 50/60HZ 1.5KW
Weight	180kg
