Semi automatic water pouch packing machine bottle filler packaging machine soda pouch filling machine

Semi automatic water pouch packing machine bottle filler packaging machine soda pouch filling machine

Product Item : YTK-G2WY
Type:Filling machine
Air compressor:0.4-0.6mpa
Product description：Semi automatic water pouch packing machine bottle filler packaging machine soda pouch filling machine,This bottle packaging machine is the ideal equipment for filling high viscosity fluid, paste.Appli
Inquiry

Semi automatic water pouch packing machine bottle filler packaging machine soda pouch filling machine

Product introduction:

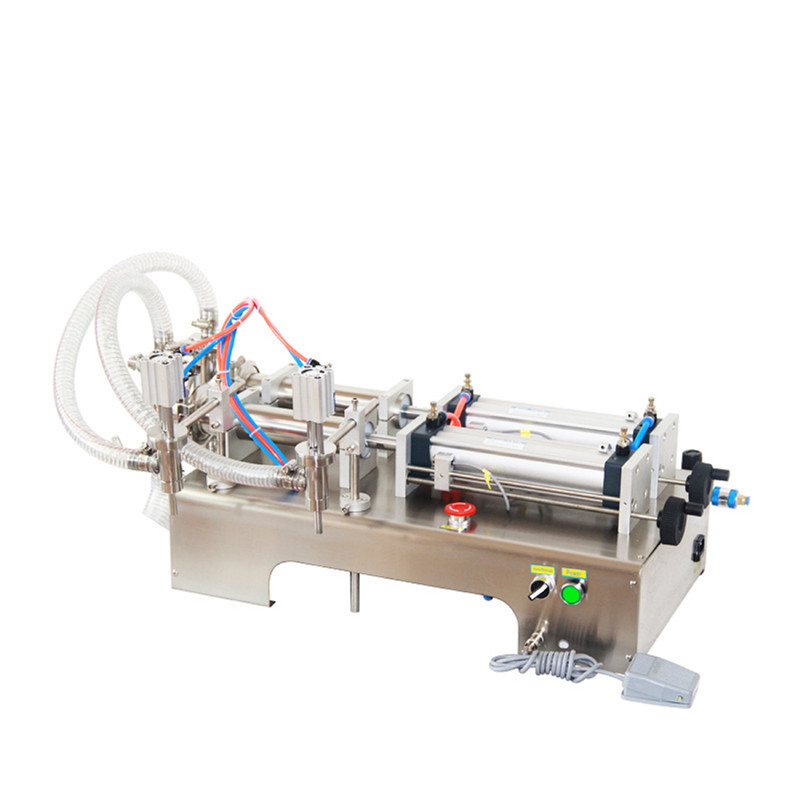

YTK double-head pneumatic liquid filling machine has the characteristics of magnetic switch, stainless steel body, automatic control, wide application range, accurate and quantitative safety and reliability.

This filling machine adopts the corrosion-resistant micro self-priming pump of special materials, and uses the microcomputer to control the working time and intermittent time of the pump, quantitative automatic filling, and equipment for automatically setting the filling time.

Product parameters:

Model	YTK-G2WY
Power supply	AC220V/110V 50/60Hz
Power	50W
Air pressure	0.4-0.6Mpa
Filling speed	10-50/min
Filling accuracy	±1%
Optional models	3-25ml,5-100ml,10-300ml,50-500ml,100-1000ml,500-2500ml,1000-5000ml
Dimension(LWH)	900(L)x500(W)x200(H)MM
Weight	50kg

Model	G2WY	G2WY	G2WY	G2WY	G2WY	G2WY	G2WY
Filling range	3-25ml	5-100ml	10-300ml	50-500ml	100-1000ml	500-3000ml	1000-5000ml
Accuracy	≤±0.5%	≤±0.5%	≤±0.5%	≤±0.5%	≤±0.5%	≤±0.5%	≤±0.5%
Output	1-25bottles/min	1-25bottles/min	1-25bottles/min	1-25bottles/min	1-25bottles/min	1-25bottles/min	1-25bottles/min
Pressure	0.4-0.9MPa	0.4-0.9MPa	0.4-0.9MPa	0.4-0.9MPa	0.4-0.9MPa	0.4-0.9MPa	0.4-0.9MPa

Features:

This series of filling machines is a product of the company's innovation and innovation in combination with advanced technology at home and abroad. Its structure is more simple, reasonable, high precision and easier to operate.

It is suitable for medicine, daily chemical, food, pesticide and special industries. It is an ideal equipment for filling high viscosity fluids.

The design is reasonable, the machine is compact, and the operation is convenient. It has adjustable filling handle, filling speed can be adjusted arbitrarily, and the filling accuracy is high. The filling valve head adopts anti dripping, anti drawing and lifting filling device.

The application of products:

This filling machine can be used to fill beverages, wine, petroleum, daily chemicals, edible oils, medicines, pesticides and other liquids, suitable for corrosive liquids, acid and alkali resistant, and corrosion resistant. Suitable for small businesses as well as small shops.
