YTK Semi Automatic Honey Milk Yogurt Vial Plastic Bottle Aluminum Foil Continuous Electromagnetic Food Induction Sealing Machine

Machine Description

YTK-1500A YTK-2000AX model transistor air-cooled desktop electromagnetic induction sealing machine has the characteristics of continuous sealing, easy to use, simple operation, crystal conduit and digital circuit.

Features:

1, continuous conveyor, electromagnetic induction.

2, crystal catheter, digital circuit.

3, air cooling, forced cooling of the fan.

4, pure copper wire heating winding

5, the height of the table is freely adjustable

6, the operation panel is simple and clear

The application of products:

It is suitable for bottle mouth induction sealing of non-metallic bottles such as plastic and glass with threads. Suitable for large and medium batch continuous sealing work.

P1

Pure copper wire heating wire

Induction sealing machine uses pure copper wire winding to heat up, heats faster and heats more evenly.

P2

Simple operation panel

Concise and clear operation panel, Chinese annotation analysis, button function at a glance, easy to operate and easy to use.

P3

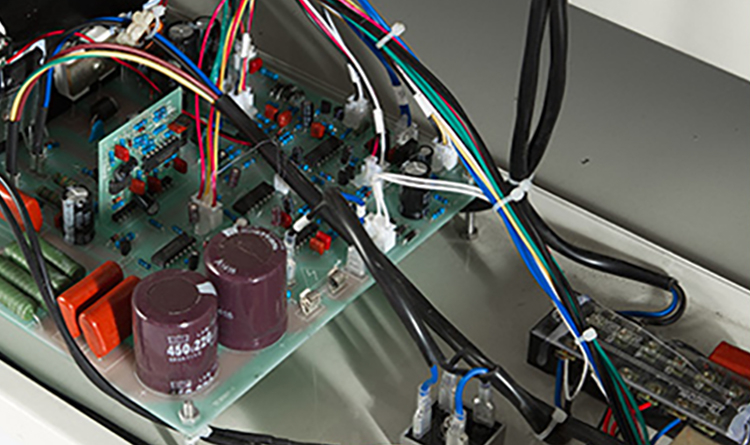

Transistor digital circuit

It adopts transistor control circuit and is easy to operate. It is suitable for large and medium batch continuous sealing work.

P4

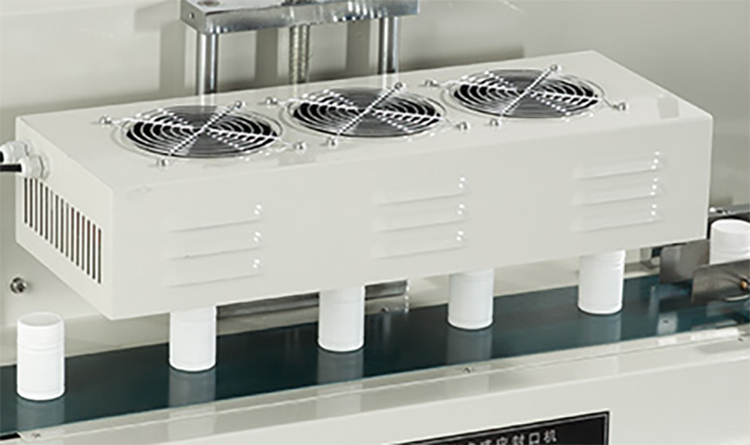

Fan forced cooling

Air-cooled heat dissipation, forced cooling of the fan to effectively dissipate heat, ensuring that the machine will not overheat.

P5

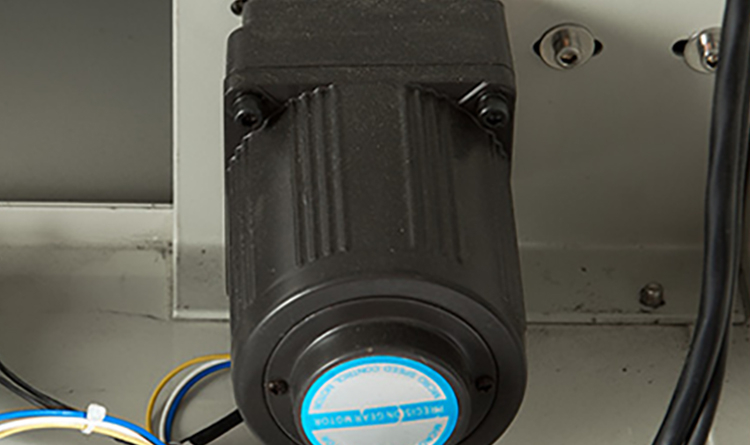

High power motor

The high-quality high-power motor is used, the output power is strong, the machine runs smoothly, and the service life is longer.

P6

Exhaust air cooling ring

The top of the cover is equipped with a plurality of heat sinks for heat dissipation, and the machine will not cause problems for a long time.

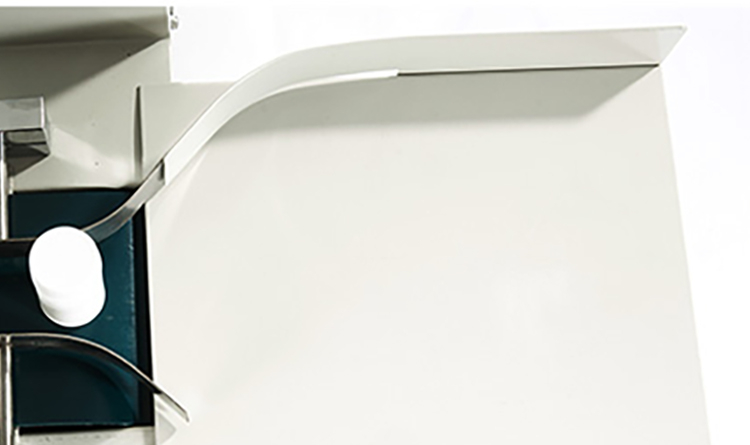

P7

Wear-resistant storage

High-quality wear-resistant storage table, durable, with rounded corners for product introduction.

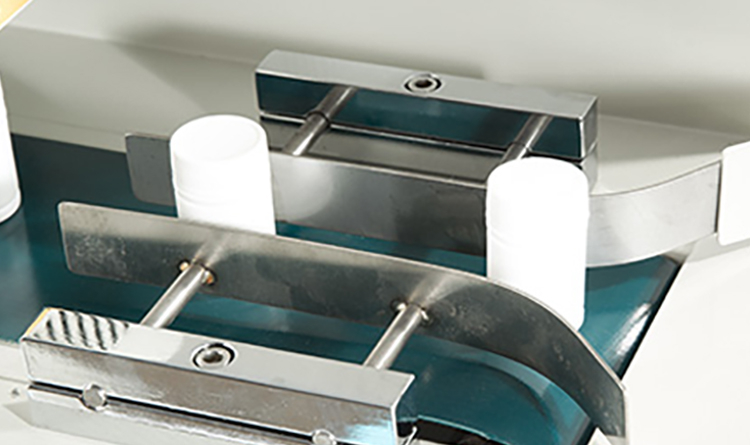

P8

Adjustable feed inlet

The feed port of the conveyor table can be adjusted in size to ensure that bottles of all diameters can be transported properly.

P9

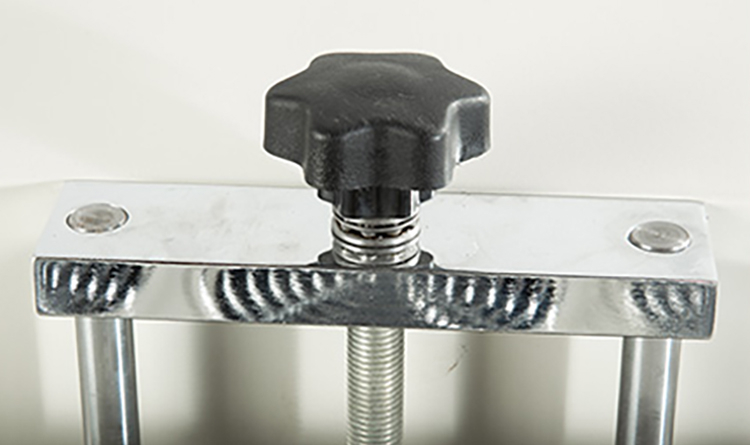

Table height adjustable

The height of the seal can be adjusted according to the actual occasion, and the handle is raised or lowered to raise or lower the seal height.

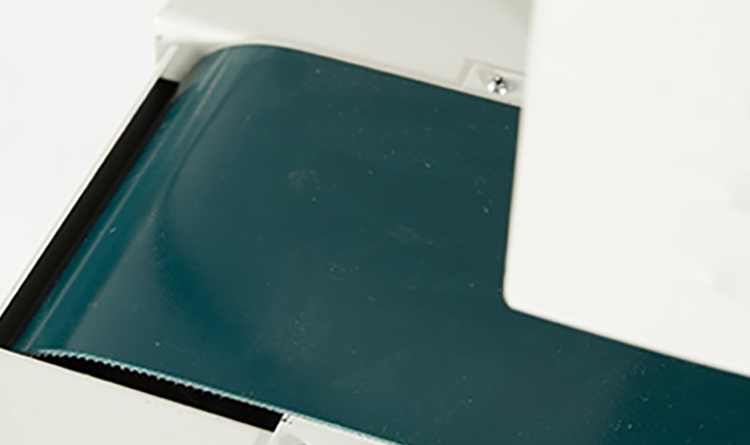

P10

High quality conveyor belt

The product uses a high-quality thickened conveyor belt, which is durable and has a long service life.

Machine parameter:

Product Model	LGYF-1500A-Ⅰ	LGYF-1500A-Ⅱ	LGYF-2000AX-Ⅰ	LGYF-2000AX-Ⅱ
Voltage	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz
Power	1500W	1500W	1800W
Electric current	≤8A	≤8A	≤9A
Control circuit	transistor digital circuit	transistor digital circuit	transistor digital circuit	transistor digital circuit
Working mode	continuous conveying	continuous conveying	continuous conveying	continuous conveying
Cooling method	cooling fan cooling	cooling fan cooling	cooling fan cooling	cooling fan cooling
Model	desktop	desktop	desktop	desktop
Chassis material	cold rolled plate	Aluminum alloy	cold rolled plate	Aluminum alloy
Sealing diameter	φ20~φ50MM	φ20~φ50MM	φ20~φ130MM	φ20~φ130MM
Applicable bottle height	40~200MM	40~200MM	40~300MM	40~300MM
Sealing speed	0~10M/MIN	0~10M/MIN	0~12M/MIN	0~12M/MIN

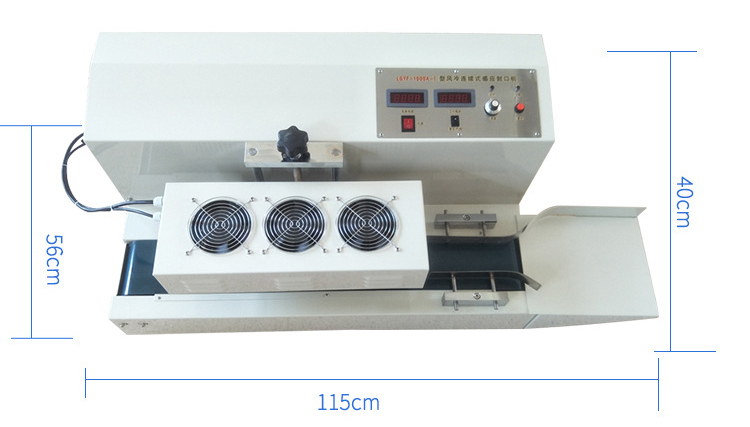

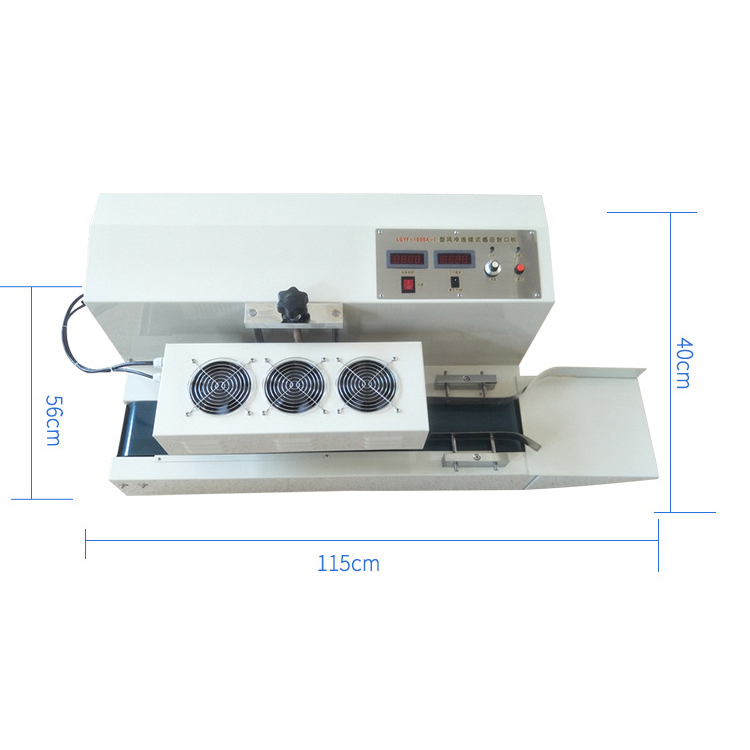

Host size	1150*480*400MM	1150*480*400MM	1150*560*400MM	1150*560*400MM
Host net weight	38KG	45KG	42KG	50KG

Machine details:
