APL800 Automatic Production Line Cosmetic Liquid Shampoo Honey Sauce Paste Bottling Filling Capping Labeling Machine

APL800 Automatic Production Line Cosmetic Liquid Shampoo Honey Sauce Paste Bottling Filling Capping Labeling Machine

Product Item : APL800
Model:APL800
Filling volume:100-1000ml,500-3000ml,1000-5000ml
Speed:30-60 bottles/minutes
Label Roll Out diameter: 190mm
Product description：Pneumatic Piston Honey Lotion Peanut Butter Filling Machine Glass Bottle Capping Machine Round Bottle Labeling Machine,Automatic Honey Paste Juice Sauce Shampoo Bottling Filling Capping Labeling Machi
Inquiry

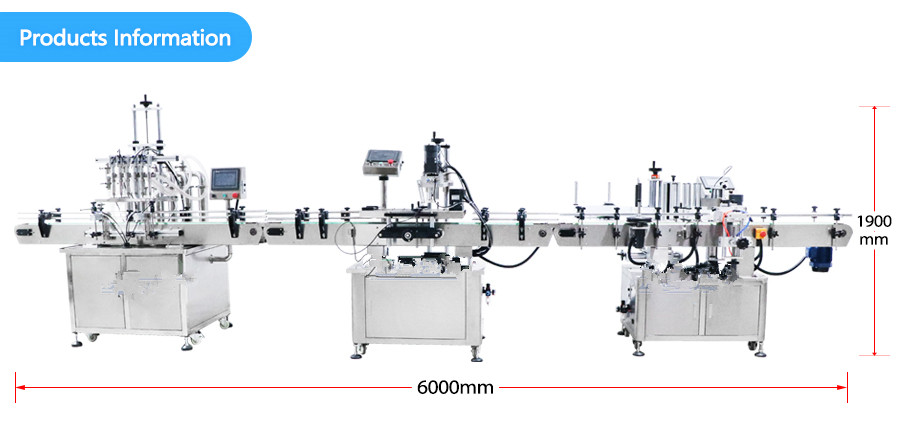

APL800 Automatic Production Line Cosmetic Liquid Shampoo Honey Sauce Paste Bottling Filling Capping Labeling Machine

Machine Description：

This automatic production is designed for filling paste or thicker liquid,like honey,hand sanitizer,laundry detergent,machine oil.It can automatically fill paste,feed bottle caps and cap bottles.Equipped with a labeling machine,it can be a complete production line for production process.Each machine of this production line can work separately.

Machine Parameter:

---Filling Machine

Model	YT2T-2Y	YT4T-4Y	YT6T-6Y	YT8T-8Y
Voltage	110/220V 50-60HZ 800W
Filling Range	5-100ml/10-300m/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Working Speed	10-30botles/min	20-35bottles/min	30-40bottles/min	35-45bottles/min
Filling Accuracy	≤±1%
Air Pressure	0.5-0.7MPa
Size Of Air Compressor Connector	φ10mm
Conveyor length	2050mm(standard ) / 3050mm(wider version)
Conveyor material	Plastic(standard) / stainless steel(custom version)
Machine weight	220kg	260kg	300kg	500kg
Machine size	2100x860x1460mm	2600x860x1460mm	3200x860x1460mm	2500x1100x1600mm

---Capping Machine

Bottle Height	50-350mm
Bottle Caps Diameter	20-50mm
Working Speed	0-40 bottles/minute (depending on bottle and caps)
Working Voltage	AC220V/110V 50-60HZ 300W
Working Pressure	0.4-0.6 MPa
Capping Torsion	4-9kgf/cm
Packing Size	21004701240mm

---Labeling Machine

Model	YTK-260
Power supply	AC220V 50Hz/60Hz 1500W
Labeling capacity	25- 50PCS /min(depends on bottle size)
Labeling accuracy	±1.0mm
Suitable Botle Diameter	φ30-100mm
Label size	(L)15-200mm (H)15-150mm
Roll inside diameter	φ76mm
Roll outside diameter	φ350mm
Conveyor Size	1950(L)*100mm(W)
Machine size	(L)2000(W)1400(H)1300(mm)
Packing Size	21209401500mm
