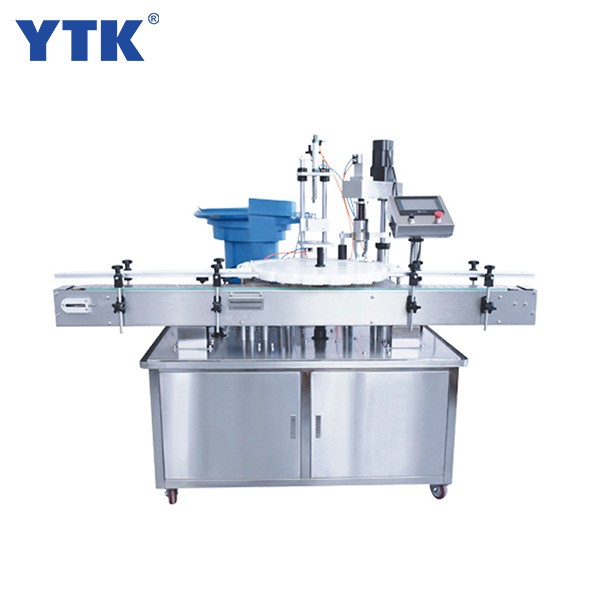

AFC1 Fully Automatic Small Chubby Gorilla Bottle Filling And Capping Machine

Product Item : AFC1
Max power :300W
Bottle height :50-350mm
Air pressure:0.4-0.6MPa
Working speed:0-40 bottles/min.(depending on liquid,bottle and caps)
Product description：filling and capping machine for gel polish aluminum cap sealing machine for wine bottles,automatic filling capping machine small filling and capping machine
Inquiry

Machine Description:

This machine is with functions of filling liquid,feeding caps and cap bottles.Multifunctional machine help you save production cost.The rotary dish of the machine can be customized according to product diameter.This machine is widely used in daily chemicals,cosmetics industries.

Machine Parameter:

Machine model	AFC1
Machine voltage	AC220V/110V 50-60HZ
Bottle diameter	25-50mm（Can Customize）
Bottle height	50-350mm
Working speed	0-40 bottles/min.(depending on liquid,bottle and caps)
Max power	300W
Air pressure	0.4-0.6MPa
Capping torsion	4-9kgf/cm
Conveyor size	About 2000100mm(LW)
Machine size	About 10158001560mm
Machine weight	About 341kg
Package size	About 22109801740mm
Package weight	About 411kg
